Tiny ears found on butterfly’s wings

A butterfly species equipped with tiny ears on its wings can distinguish between high and low pitch sounds, possibly as a way to listen in on nearby birds, new research suggests.
Image: blue morpho butterfly
The blue morpho butterfly, which lives in Central and South America, has an odd-looking hearing membrane at the base of its wing. Kathleen Lucas
/ Source: LiveScience

A butterfly species equipped with tiny ears on its wings can distinguish between high and low pitch sounds, possibly as a way to listen in on nearby birds, new research suggests.

Scientists thought were deaf until 1912 when the first butterfly ears were identified. Only in the past decade or so have researchers examined the anatomy and physiology of butterfly ears, which they are finding to be quite diverse and present in several butterfly species.

The latest discovery was made with the blue morpho butterfly (Morpho peleides), which dazzles with its when it flits about in its native Central and South America.

Scientists knew from relatively recent research that the morpho sports simple wing ears. In the new study, Kathleen Lucas of the University of Bristol in England and her colleagues were interested in the odd-looking hearing membrane that sits at the base of the blue morpho's wing. The tympanal membrane, as it is called, is oval-shaped with a dome at its center that kind of resembles the yolk at the center of a fried egg, Lucas said.

Sound waves from, say, crackling leaves or a singing bird hit the membrane and get converted into nerve impulses by nearby . Those impulses are picked up by nerve cells.

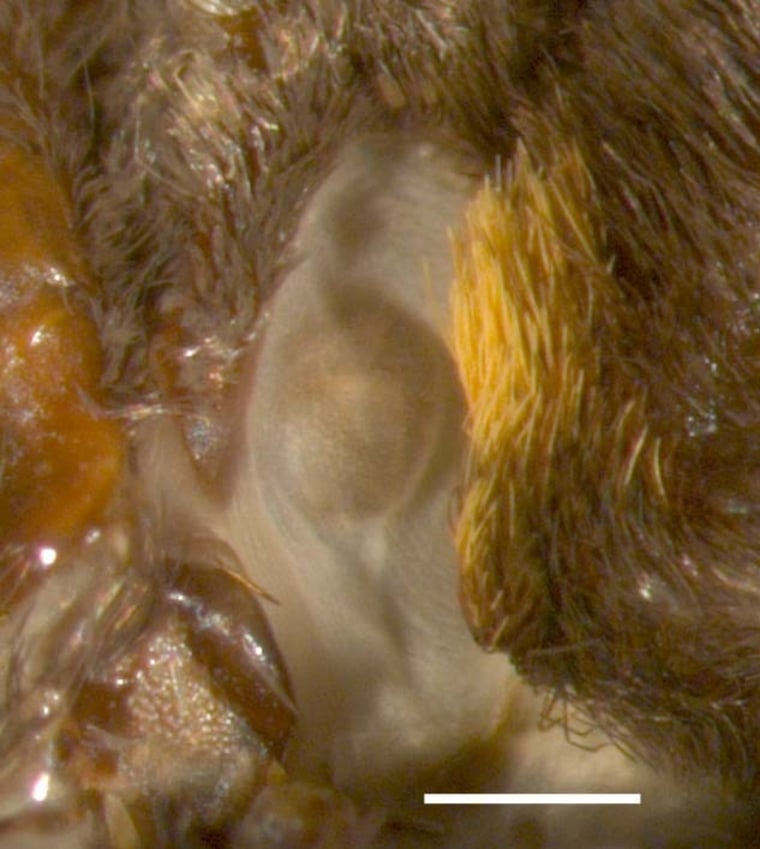

The simple ear of the blue morpho butterfly is tiny (shown here close-up) and is located at the base of the animal's wings.

To figure out how the fried-egg membrane helped the butterfly hear, the researchers played sounds of various frequencies within the butterfly's estimated hearing range, between 1,000 Hertz and 5,000 Hertz. For comparison, our hearing range extends from 20 Hz to 20,000 Hz, though most speech lies between 100 Hz and 4,000 Hz.

During the mini concerts, the team used a tiny laser beam to scan the surface of the membrane of several morpho butterflies. They found lower frequency sounds between 1,000 Hz and 5,000 Hz, caused the vibrations to focus on a spot on the outer membrane. Higher frequency sounds, above 5,000 Hz, caused the entire membrane to vibrate, including the dome structure.

Overall, the membrane vibrated more with lower frequencies, Lucas said. And measurements of nerve responses suggested the is extra sensitive to such pitches. Taken together, the vibrational and nerve recordings suggest this butterfly can distinguish between different pitches, though further research is needed to confirm this ability.

"Not a lot of ears are able to do that," Lucas told LiveScience. "The moth ear is a simple responding ear; it listens to a certain frequency range, and it doesn't matter what frequency it is within that range, [the moth] hears it and initiates an escape response."

As for why the morpho butterfly would need such , Lucas speculates they could help the butterflies figure out if birds are about to attack. Lower pitch sounds would indicate the flapping of bird wings, Lucas said, which could signal the butterflies to turn tail and fly away.

If the butterfly detected higher frequencies, like those of bird songs, it would signal the butterfly to remain at rest, a posture that keeps the butterfly hidden. The butterfly's blue coloration only covers the inside of the wings, and thus only shows up in flight. At rest with the wings closed, the butterfly would only show its dull, brown coloring.

The research is detailed in a recent issue of the Journal of Experimental Biology.
