Tiny solar-powered sensor runs almost forever

A tiny solar-powered sensor, smaller than Abe Lincoln's head on a penny, can supply almost perpetual energy, its creators say.

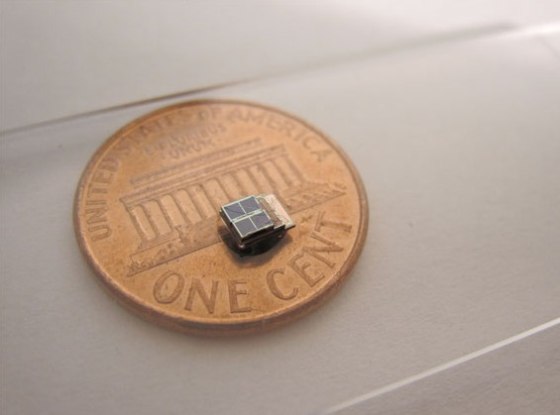

Image: Low-pow sensor system
A low-power sensor system developed at the University of Michigan 1,000 times smaller than comparable commercial counterparts. It could enable new biomedical implants.
/ Source: TechNewsDaily

A tiny solar-powered sensor, smaller than Abe Lincoln's head on a penny, can supply almost perpetual energy, its creators say.

The device contains solar cells, a battery and a processor, all in a package that measures  2.5 by 3.5 by 1 millimeters.

It could enable new biomedical implants as well as new devices to monitor buildings, bridges and homes. "It could vastly improve the efficiency and cost of current environmental sensor networks designed to detect movement or track air and water quality," the developers said in a statement.

With an off-the-shelf ARM Cortex-M3 processor, the system contains the lowest-powered commercial-class microcontroller. It uses about 2,000 times less power in sleep mode than its most energy-efficient counterpart on the market today.

"Our system can run nearly perpetually if periodically exposed to reasonable lighting conditions, even indoors," said David Blaauw, an electrical and computer engineering professor. "Its only limiting factor is battery wear-out, but the battery would last many years."

The new sensor spends most of its time in sleep mode, waking briefly every few minutes to take measurements. Its total average power consumption is less than 1 nanowatt. A nanowatt is one-billionth of a watt.

The developers say the key innovation is their method for managing power. The processor only needs about half of a volt to operate, but its low-voltage, thin-film Cymbet battery puts out close to 4 volts. The voltage, which is essentially the pressure of the electric current, must be reduced for the system to function most efficiently.

"If we used traditional methods, the voltage conversion process would have consumed many times more power than the processor itself uses," said Dennis Sylvester, an associate professor in electrical and computer engineering.

One way the U-M engineers made the voltage conversion more efficient is by slowing the power management unit’s clock when the processor’s load is light.

"We skip beats if we determine the voltage is sufficiently stable," Sylvester said.

The system, in the process of being commercialized, could enable less-invasive ways to monitor pressure changes in the eyes, brain, and in tumors in patients with glaucoma, head trauma, or cancer, the scientists say. In the body, the sensor could conceivably harvest energy from movement or heat, rather than light.

This research, presented today at the International Solid-State Circuits Conference in San Francisco, was funded by the National Science Foundation, the Defense Advanced Research Projects Agency, the National Institute of Standards and Technology, the Focus Center Research Program and ARM.
