Russia revises rocket plans for its future manned spaceship

Russia's next new manned spacecraft, which is supposed to be capable of making trips to the moon, will launch atop a rocket that was originally designed only for robotic spacecraft.
Image: ACV

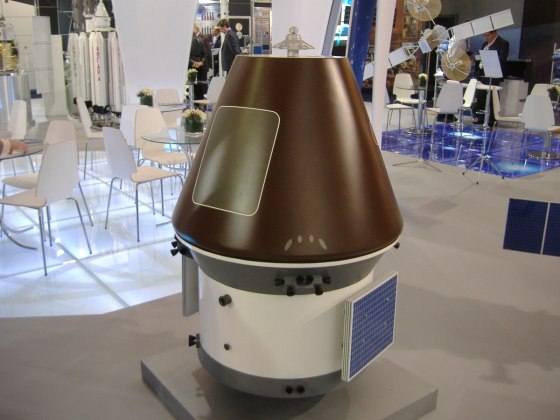

A scale model of Russia's Advanced Crew Vehicle is displayed at this month's Farnborough International Airshow in England. Its designers say the spacecraft will be able to carry six crew members and 1,100 pounds of cargo.Rob Coppinger /

Russia's next new manned spacecraft will launch atop a different rocket than planned, one originally designed for only robotic spacecraft. The country's new six-cosmonaut spacecraft is due to lift off on its first test flight in 2018, using a launcher named Angara A5 developed for unmanned missions.

The new six-cosmonaut spacecraft, which is called the Advanced Crew Vehicle, or ACV, was to have been launched by another new rocket, Rus-M. The Rus-M was to be an evolution of the Samara Space Center's Soyuz FG rocket that launches the Soyuz manned spacecraft. But Rus-M was canceled last year, while ACV was continued despite no launcher being identified for it.

As well as carrying six cosmonauts, the ACV will carry 1,100 pounds (500 kilograms) of cargo and could travel to the moon. Like the Soyuz capsule, which Russia currently uses to launch humans to orbit, the ACV will use rockets to land.

Image: Angara A5
A scale model of the Angara A5 was on display at the Farnborough International Airshow in England. The Angara A5 will be human-rated to carry the Advanced Crew Vehicle.

Rocket family
The Angara A5 is the heavy version of Angara, a family of four rockets based on a common core architecture. The Universal Rocket Motor is the common core that uses liquid oxygen and kerosene. The A5 has five of these cores combined for a total liftoff mass of 1.7 million pounds (770,000 kilograms), and the rocket will be able to put 53,900 pounds (24,500 kilograms) into a 124-mile-high (200-kilometer-high) orbit. [World's Tallest Rockets: How They Stack Up]

Soyuz is launched from the Baikonur Cosmodrome in Kazakhstan, and Angara will fly from the planned Baiterek facility, also at Baikonur, after its first few flights from Plesetsk Cosmodrome in northern Russia.

Vladimir Popovkin, the director general of Russia's Federal Space Agency, told that "the main launcher for the new spacecraft will be Angara," after explaining that earlier testing of the spacecraft’s technology, such as its launch escape system, will use the Ukrainian Yuzhnoye Design Bureau’s Zenit rocket.

Tested by Korea
Popovkin spoke to at his space agency's exhibit at the Farnborough International Airshow in England, which took place July 9-15. On exhibit by the Russian agency were scale models of the ACV and an Angara A5 and ACV stack with its launch escape system.

He added that Angara rocket technology has already been tested. South Korea’s Korea Space Launch Vehicle (KSLV) uses it for its first stage, which is provided by Khrunichev State Research and Production Space Center, Angara’s prime contractor. On KSLV's maiden flight in August 2009, the vehicle's first stage was successful, but the Korean-made upper stage failed. That upper stage failed again a year later on the second flight. Later this year the third launch of the KSLV will take place.

The first launch of the Angara family is scheduled for 2013 — years later than originally planned.

The Angara family has been in development since the 1990s, but funding problems have delayed its entry into service. This year's first flight will see the smallest of the four, the A1.2, fly.

Using one core, the A1.2 liftoff weight is 376,000 pounds, and the payload capability for a 124-mile orbit is 8,300 pounds. There was a smaller Angara, the A1.1, with a 4,400-pound payload ability, but plans for that vehicle have been canceled. It and the A1.2 were supposed to fly by 2011.

There is a super-heavy version of Angara, the A7, in the works. This has a 2.4 million-pound liftoff weight, and its 124-mile orbit payload capability is 77,000 pounds.
