Airliners of the Future May Sport Some Very Unusual Designs

Next time you spot an airliner flying overhead, consider that it would have looked virtually the same back in 1960. But the shape of planes to come is finally about to change.

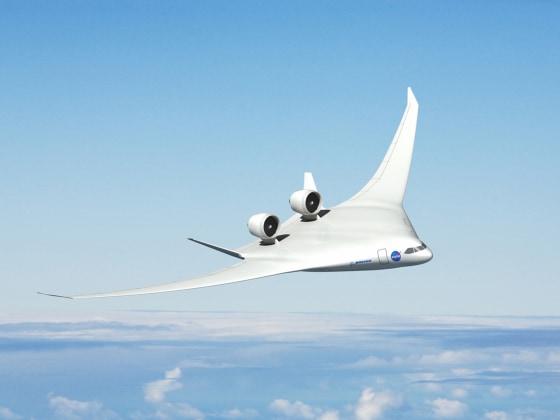

Boeing's advanced vehicle concept centers around the familiar blended wing body design with Pratt & Whitney geared turbofan engines on the top of the plane's back end, flanked by two vertical tails to shield people on the ground from engine noise.
Boeing's advanced vehicle concept centers around the familiar blended wing body design with Pratt & Whitney geared turbofan engines on the top of the plane's back end, flanked by two vertical tails to shield people on the ground from engine noise.NASA

Next time you spot an airliner flying overhead, consider that it would have looked virtually the same back in 1960. But the shapes of today's jets are about to see dynamic changes.

Almost every commercial jetliner, from the first Boeing 707 to the jumbo 747 and the superjumbo Airbus 380, features the identical tube-and-wing layout: a cigar-shaped fuselage with engines hanging off a pair of wings at the midpoint, and a trio of stabilizers at the tail. Airline-tried and passenger-tested, this arrangement is pretty much how jets have always looked, so it's no surprise that it's what today's designers still consider the best and safest way to fly the friendly skies.

Related: Driving on the Roads of the Future Will Be a Real Trip

As the aviation industry gears up for its next generation of redesigns, the archetypal airframe is showing amazing staying power despite a half-century of astonishing innovation in aerospace technology.

The continuing tenure of these airliners has been aided by the fact that all the world's airport gates are built to handle its shape. Also crucial is the ease of maintenance for today's jets, since engines mounted below the wings provide simple access for mechanics. Add in the industry's cautious approach toward adopting technology — in stages, only after proof and FAA certification — and it's easy to see why steering away from existing equipment isn't all that easy.

A Change in the Air

Over the next 20 years, the worldwide fleet is expected to grow by some 36,000 airplanes — costing upwards of $5 trillion — to fulfill worldwide travel demands. The prospect of this unprecedented surge, plus stricter emissions limits and rising fuel costs, could, at last, bring visible changes to the familiar airliner, says James Heidmann, manager of the Advanced Air Transport Technology project at NASA Glenn in Cleveland. This transformation would be the biggest since the jet was introduced in the mid-1950s.

Three industry teams spent 2011 studying how to meet NASA's goals for making future aircraft burn 50 percent less fuel than aircraft that entered service in 1998, emit 75 percent fewer harmful emissions; and shrink the size of geographic areas affected by objectionable airport noise by 83 percent.
Three industry teams spent 2011 studying how to meet NASA's goals for making future aircraft burn 50 percent less fuel than aircraft that entered service in 1998, emit 75 percent fewer harmful emissions; and shrink the size of geographic areas affected by objectionable airport noise by 83 percent.NASA

NASA's New Aviation Horizons initiative, an effort to explore large-aircraft designs and greener technologies is currently unfunded and on hold. But the four chief contractors for subsonic concepts — Aurora Flight Sciences, Dzyne Technologies, Lockheed Martin, and Boeing — successfully completed their research contracts, Heidmann reports. One of the initiative's goals is to craft airliners that burn half the fuel of current jets and generate 75 percent less pollution while being much quieter.

Breaking the Mold

Dzyne's Blended Wing Body concept.
Dzyne's Blended Wing Body concept.Dzyne Technologies

Most striking of these futuristic designs are Boeing's and Lockheed Martin's hybrid wing body, and Dzyne's blended wing body. With wings and fuselages melded at various degrees, these efficient flying machines are almost whale-like in appearance, featuring clean lines and voluminous interiors that are particularly suited for carrying military cargo.

Boeing's Truss-Braced Wing concept.
Boeing's Truss-Braced Wing concept.NASA

Boeing's truss-braced wing concept has a standard tubular fuselage that's a bit more familiar, but it mounts on long, thin, high-efficiency wings supported by diagonal trusses — like a Piper Cub on steroids. Its glider-like wings are so long that their tips would likely have to fold up to fit at the airport gate, adding unwanted weight and complexity.

The "double bubble" D8 Series future aircraft design concept comes from the research team led by the Massachusetts Institute of Technology.
The "double bubble" D8 Series future aircraft design concept comes from the research team led by the Massachusetts Institute of Technology.NASA/MIT/Aurora Flight Sciences

Meanwhile, the double-wide fuselage of Aurora's D8 Double Bubble airliner — seemingly two cigars merged side-by-side — enables the introduction of a new, fuel-saving propulsion concept NASA researchers call Boundary Layer Ingestion, or BLI. It's a potentially game-changing technology, Heidmann says, but one that requires moving the engines from the wings to the top of the rear fuselage (a layout that mimics Lockheed's L-1011 Tristar, a pioneering design of the recent past).

Suck it in, Spit it Out

One promising BLI-based airliner design is the STARC-ABL, an acronym for "single-aisle turbo-electric aircraft with an aft boundary layer propulsor." Think of a standard Boeing 737, except with a module the same diameter as the fuselage attached to the tail — like a wasp's stinger.

STARC-ABL.
STARC-ABL.NASA

This airliner "combines the benefits of hybrid-electric propulsion with the proven tube-and-wing configuration,” Heidmann says. Such a BLI-demonstrator could be possible in five to ten years.

Inside its rear-mounted power pod is an electrically driven fan that provides propulsion while also ingesting much of the slow-moving boundary layer air that flows next to the fuselage. This low-energy air enters a front intake vent and is blown out the back, reenergizing the plane's wake to cut aerodynamic drag.

White Cloudy sky
Boundary Layer Ingestionprimeimages / Getty Images/iStockphoto

The STARC-ABL carries downsized, less fuel-thirsty turbofan engines on its wings that can produce thrust or generate electric power, allowing the hybrid-electric design to operate like a flying Toyota Prius. During takeoff, the engines would supply 80 percent of the necessary thrust, with the remainder delivered by the aft-mounted, in-line electric fan. Studies show that the concept airliner offers a potential 10 percent to 15 percent improvement in fuel consumption, even considering the extra weight of the module.

Another BLI-Based Concept

BLI technology is also the "make-or-break" aspect of Aurora's D8 Double Bubble concept, says John Langford, company chairman and CEO. The D8, which is being developed in concert with MIT and Pratt & Whitney, moves the engines away from the “clean” airflow conditions below the wings to the top rear of the double-wide fuselage.

The challenge of the D8 design is determining whether the smaller, lighter turbofans, which are normally engineered to work in uniform air flows, will be able to operate in the unsteady air flows at the back of the plane. In this case, every time the engines' front fan blades swing down toward the airplane's skin, where slower, boundary layer air flows, the blades are exposed to severe stresses.

Aurora D8.
Aurora D8.

“This is like getting hit by a hammer once every time your fan blade goes around,” says Heidmann, who notes that a separate NASA-led research consortium recently completed wind tunnel testing of a BLI engine. “Now we have a better idea how to design a fan that can operate in this distorted flow environment.”

Langford is confident BLI propulsion will work just fine on the D8. And because the design's double-wide, oval fuselage creates a significant amount of aerodynamic lift and its engines are integrated into its surface, the wings can be smaller, ensuring that the plane will fit at existing airport gates. “Of all the X-Plane concepts, it's the least disruptive to the airlines and the airports,” Langford says.

Related: These Giant Drones Could Seriously Disrupt the Shipping Industry

Aurora's CEO is likewise sure the D8's wind-cheating features will combine to make it extremely economical to fly. At the same time, the design's top-mounted engine position and the distinctive tail structure will shield engine noise.

“The best thing about the D8 design is that it allows two aisles for easy seating and deplaning,” Langford says of its wider, shorter interior. “And with the engines positioned to the rear, the cabin would be very quiet. Passengers will love this plane.”

Electric Airliners on the Runway

Another concept gaining interest is NASA's X-57 Maxwell, an electric aircraft that features 14 small, electrically driven propellers along its wings. Intended for exploring the feasibility of electric propulsion (a potentially quieter, greener way to fly), the X-57 is one of the several designs and propulsion concepts that have garnered interest among the aviation community.

This artist's concept of the X-57 Maxwell shows the plane's specially designed wing and 14 electric motors.
This artist's concept of the X-57 Maxwell shows the plane's specially designed wing and 14 electric motors.NASA Langley/Advanced Concepts Lab, AMA, Inc.

Two more electric plane startups have just come to light in the last month. In a partnership with British budget airline EasyJet, Wright Electric plans to develop a 150-seat electric airplane that would make short flights from New York to Boston or London to Paris. Meanwhile, Zunum Aero's stated goal is to build its electric-hybrid airliner prototype within the next two years.

And citing continuing progress in electric propulsion technology, European aerospace giant Airbus announced plans to drop its all-electric family of light aircraft to work instead on a larger aircraft with a more powerful electric propulsion system. Called E-Fan X, it could fly within three years.

Artist conception of the two-seater version E-Fan 2.0, which will be a fully electric training aircraft powered only by batteries.
Artist conception of the two-seater version E-Fan 2.0, which will be a fully electric training aircraft powered only by batteries.Courtesy Airbus Group

Ideally, all these aircraft would be powered by clean, green electrochemical batteries, but current technology doesn't provide all that much power for the weight, which severely limits range. The necessary number of batteries for NASA's X-57 prototype, estimated at about 800 pounds each, would weigh down the fuselage considerably. Put another way, the jet-fuel capacity of a Boeing 787 Dreamliner is reportedly around 223,000 pounds. A battery pack that can store an equivalent amount of energy would weigh about 4.5 million pounds.

Related: Could This Be the Battery That Revolutionizes Our Cars and Phones?

Airbus engineers estimate that a regional aircraft might require up to 20 megawatts of power, which would mean that its batteries would need to be ten times more powerful than any available today. Failing a major breakthrough in battery technology, these electric jets will need to rely on hybrid power plants similar to the one used in the SPARC-ABL concept.

Supersonic Transports Reborn

After the withdrawal of the Concorde supersonic transport (SST) more than a decade ago, faster passenger air travel could once again be in the cards now that aerospace engineers have made progress toward supersonic flight without the sonic boom. A boom-less supersonic airliner would be able to fly over land, whereas the Concorde was limited to flights over the ocean.

An artist's concept of a possible Low Boom Flight Demonstration Quiet Supersonic Transport (QueSST) X-plane design. The award of a preliminary design contract is the first step towards the possible return of supersonic passenger travel - but this time quieter and more affordable.
An artist's concept of a possible Low Boom Flight Demonstration Quiet Supersonic Transport (QueSST) X-plane design. The award of a preliminary design contract is the first step towards the possible return of supersonic passenger travel - but this time quieter and more affordable.Courtesy of Lockheed Martin

NASA is sponsoring the preliminary design of a quieter, “low boom” demonstration aircraft — the Quiet Supersonic Technology (QueSST) — by Lockheed Martin. Following feasibility studies and efforts to better understand maximum acceptable sound levels across the country, the QueSST project aims to produce a plane that creates a relatively soft thump rather than a big boom.

Boom Supersonic

And earlier this year, a startup firm called Boom Supersonic announced it had raised the necessary capital to build and fly an arrow-shaped supersonic jet demonstrator, the XB-1, which will a one-third scale prototype of the airliner it hopes to someday sell. The bigger Boom jet aims to travel from New York to London in just 3 hours and 15 minutes, less than half the time it now takes, at a ticket cost of $2,500 each way.

With continued perseverance and a bit of luck, it's probably just a matter of time before you see new shapes flying overhead.
