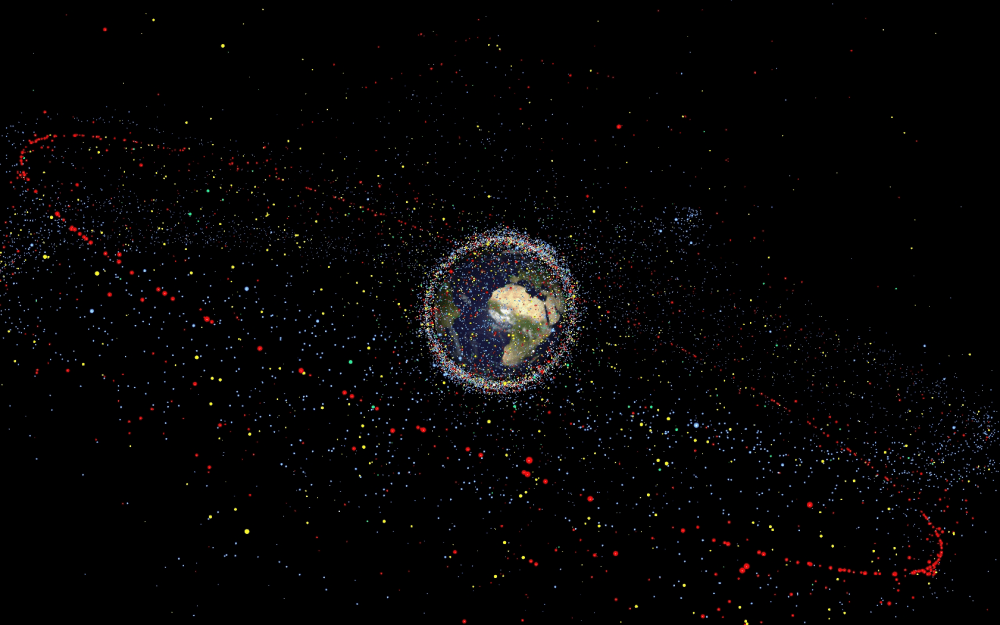

Retired NASA scientist Don Kessler found himself in an all-too-familiar role at last month’s European Conference on Space Debris: warning of an environmental crisis unfolding above our heads. Six decades of rocket launches have left behind a vast trash heap in orbit around Earth. There are now some 750,000 objects larger than a half-inch, all whipping around the planet at about 20,000 mph. At that speed, the impact of a small nut or bolt carries the wallop of a hand grenade. Even a pinhead-size chip of paint (there may be 100 million such bits up there) hits like a 22-caliber bullet.
For any satellite or astronaut working in space, it’s a serious problem.
But it’s still not the whole problem, as Kessler keeps reminding people. In a now-famous 1978 paper, drawing on his research at NASA’s Johnson Space Center, he and his colleague Burton Cour-Palais showed that collisions between pieces of debris in orbit could create more debris, leading to a potential chain reaction. If the amount of junk multiplies exponentially, that effectively turns all of low-Earth orbit into a no-fly zone — a worst-case scenario known as Kessler Syndrome.
Already, the International Space Station (ISS) bears numerous scars from impacts. In 2009, a dead Russian military satellite shattered a $50 million Iridium satellite, and near-misses are increasingly common.
When Kessler arrived at the space-debris conference, though, he had an unsettling sense of déjà vu. “There’s an awful lot of repetition going on, and it looks to me like there’s not a lot of progress that’s been made in the past 20 years,” he says.
Part of the solution, everyone agrees, is pragmatic: We need to control how much junk we send up. “We require a coordinated global solution to a global problem,” Brigitte Zypries, Germany’s minister for economic affairs, told those at the ESA conference. Releasing rocket stages at low altitudes so they quickly burn up would help a lot. So would forcing companies to make sure all fuel is vented from rockets or deactivated satellites that remain in orbit. Exploding fuel is a major source of space shrapnel.
At the conference, Hugh Lewis of the University of Southampton pushed for a rule that would require new satellites to return to Earth within five years after deactivation. Even without intervention, objects orbiting fewer than 500 miles above the ground will come down within a few decades due to drag from the uppermost wisps of atmosphere.
Waiting for the atmosphere to clean up our mess is not going to be enough, however. Computer models show there’s already enough junk in orbit to push us unnervingly close to the Kessler Syndrome.
“There are many different ways we could remove or remediate objects," says space debris expert Thomas Schildknecht from the University of Bern. "But we need action. We need to go forward — now.”
In other words, we need to find a way to take out the space trash. And this is the point at which mild-mannered space junk experts improbably morph into techno-visionaries.
Snatch and Grab in Space
Almost every serious junk-removal concept under consideration sounds like something dreamed up by Tony Stark: electromagnetic lassos, gripping arms, solar sails, and laser cannons. That’s no coincidence. The technologies needed to remove pieces of debris from Earth's orbit really are the same ones that inspired many science-fiction worlds.
“There are many different ways we could remove or remediate objects. But we need action. We need to go forward — now.”
First, take that electromagnetic lasso, technically known as a space tether. In January, the Japanese space agency, JAXA, attached a 2,300-foot-long spool of aluminum-and-steel cable to an uncrewed space station supply vehicle. Once unwound, the dangling cable would get enmeshed in Earth’s magnetic field and get pulled slightly toward the ground. In the future, dedicated satellites could approach large pieces of debris, latch onto them, wind out a similar cable, and drag the offending piece of junk to a fiery burn up in the atmosphere.
The space tether is also a core technology needed to build a space elevator, a high-frontier concept for a 22,300-mile-high lift that would bring objects from Earth into space without a rocket. Arthur C. Clarke popularized the idea in his 1978 novel "The Fountains of Paradise," in which he explained it as “a tower, rising clear through the atmosphere, and far, far beyond.” JAXA’s low-budget tether test failed but more experiments will follow, each providing a back-door test of that elevated idea.
In 2021, the ESA plans to launch the first dedicated space junk removal mission, called e.Deorbit. It will hunt down a derelict satellite, grab it with a robot gripper or a net, and then steer it out of orbit. Being able to rendezvous with and capture a satellite is also just what you’d need to do if you wanted to lasso a small asteroid, clamp onto it, and start a space mining operation — extracting its water for fuel or its metals for construction materials.
A Mountain View, Calif. startup called Deep Space Industries is developing those technologies for a test mission called Prospector X, with funding and technical support from both NASA and ESA. The tiny nation of Luxembourg is also investing 200 million euros in asteroid mining, attracting attention from both Deep Space Industries and its rival, Planetary Resources, co-founded by Google’s Larry Page.
An especially appealing way to pull a satellite out of orbit is with a light sail, which uses the sun's energy to move an object and so needs no onboard propellant. Such a sail could push a space probe through the solar system just as easily as it could de-orbit a dead satellite; there’s no inherent difference between a space-junk sail and a space-exploration sail.
England’s Surrey Space Center is partnering with the ESA to create a “Gossamer Sail for Satellite Deorbiting.” Estonia plans a 2019 test of a related technology called an electric solar wind sail. In the U.S., the non-profit Planetary Society will launch LightSail-2 by the end of this year, with the aim of inspiring sail-powered vessels to tour the solar system.
“You could have very low-cost missions, universities sending spacecraft to the moon or asteroids powered only by the sun,” says Bill Nye, the Planetary Society’s CEO and well-known on television as the Science Guy. “What’s not to love?”
A Laser-Focus on the Stars
Lassos, grabbers, and sails would all tackle pieces of space junk one at a time. Going after the relatively few big pieces makes sense, Kessler notes, since they are potential sources of secondary debris. But doing a broader cleanup will require reaching deep into the bag of tricks, starting with the laser cannon.
A space laser turns out to be a highly effective way to knock debris out of orbit, especially smaller pieces that are impractical to snatch directly. One laser could effectively take out an unlimited number of targets, so long as you can find them and aim at them accurately. You don’t even have to disintegrate the junk to get rid of it, notes Dr. Claude Phipps of Photonic Associates LLC in New Mexico. All you have to is vaporize a little bit, which will puff off and then propel the object out of orbit.
Engineers led by Toshikazu Ebisuzaki of Japan’s RIKEN lab worked out a plan for a 10-watt laser mini-cannon that would be mounted on the ISS to test the concept. If the targeting and firing work as intended, they envision ramping up to a 500,000-watt free-range laser satellite that would patrol low-Earth orbit.
This system “could remove most of the centimeter-sized debris within five years,” Ebisuzaki claims. Phipps questions the practicality of such a huge laser satellite but thinks the same basic plan could work just fine if carried out by a pulsed laser from the ground. He estimates that he could take out satellite-size objects for about $1 million a pop. Researchers at the Institute of Technical Physics in Stuttgart, Germany, are studying a similar system.
Once you have the technology to blast bits of space junk out of the low-Earth orbit, some glorious goals come within reach. Philip Lubin of the University of California, Santa Barbara, has drawn up plans for a system of ground-based lasers he calls DE-STAR. His lab has conducted promising experiments on laser-based space debris mitigation, but his ultimate goal is to scale up the system so it could protect Earth from larger external threats.
“It could be used for deflection of asteroids as well as evaporation of asteroids, among other uses,” Lubin says. The amount of energy needed to avert an asteroid strike is far beyond what any existing laser system can achieve, so a space debris zapping system would be a crucial stepping stone technology.
But even warding off killer asteroids is not Lubin’s ultimate goal. What he really wants to do is use the same laser array technology, bulked up even further, to accelerate miniature spacecraft to ultra-high velocities — up to 20 percent the speed of light. Those spacecraft would have sails to catch the laser beam. Once launched, the mini-probes could then explore planets and search for signs of life in the universe.
Yuri Milner, the Russian billionaire who founded the Breakthrough Institute, has committed a $100 million investment to this approach. “We know it will take a long time to launch a spacecraft that can travel interstellar, but we also know that the time to start is now,” he said in an interview. To that end, Lubin is working with Milner on a proposal called Breakthrough Starshot, intended to visit an Earth-size planet around the star Proxima Centauri, 4.2 light years away.
But first, we have to get clear of the thickening garbage patch over our heads.
“The biggest hold up to doing that is that there’s been no testing for any of the concepts you’ve mentioned,” Kessler says. If we move through that research and development stage, he is optimistic future technology will be able to solve the problem that past technology created. Better yet, it may do much more. The mundane solutions to our space mess may be the ones that ultimately lead humanity beyond the stars.
