One of the most famous roads from America’s past could help set the stage for the highway of the future, at least if a project launched by the Missouri Department of Transportation pans out.
MoDOT, as its locally known, plans to become the first public highway department to test out a new type of pavement that not only replaces conventional concrete and asphalt but that also can generate electricity through built-in solar panels. The technology was developed by an Idaho-based start-up called Solar Roadways.
“If the solar roadway concept proves to be feasible, it creates electricity and could be the first road in history to ever pay for itself,” said Tom Blair, the team leader on Missouri’s Road to Tomorrow initiative, which was created two years ago to find ways to increase the state’s investment in its roadway infrastructure without raising taxes.
Read More: Getting Their Modern-Day Kicks on Old Route 66

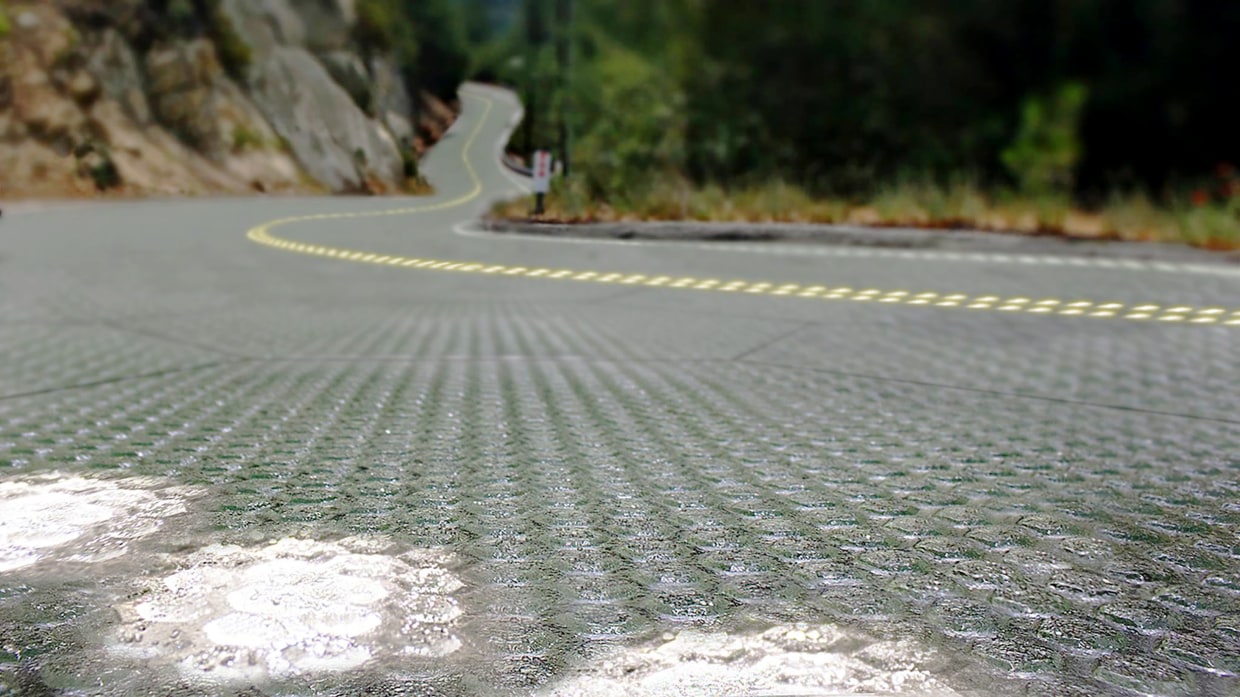

Solar Roadways, founded by husband-and-wife entrepreneurs Julie and Scott Brusaw, has developed a hexagonal block of about 4.4 square feet made of tempered glass that is strong enough, they claim, to stand up to even the heaviest truck traffic. The glass blocks have a mu, or traction, similar to that of conventional asphalt.
But they each contain solar cells capable of generating up to 44 watts of current, “entirely dependent on the sunshine they receive,” explained Julie Brusaw by e-mail.
Caught on Camera: Ostrich Races Traffic on Busy HighwayJune 17, 201600:26
The blocks also have built-in LED lights that can display lane markings bright enough to be seen in daylight — and which can be reprogrammed if there’s a need to shift lanes, for example. The electric current can be diverted into the grid or power heating elements that, during the winter, would minimize snow and ice accumulation.
While final details are still in the works, MoDOT plans to have the first Solar Roadway blocks in place “before the first snow falls this year,” said project leader Blair. Initially, the glass pavement will be used to replace most of the sidewalks at the Route 66 Welcome Center and Museum in Conway, Missouri. It’s located where the original Mother Road, as the highway was known, has been supplanted by Interstate-44.
The energy the blocks create will be used to supplement power the center now gets off the grid, a process that will let MoDOT “directly measure what the payback would be in the real world,” said Blair.
Read More: This Guy Build the Perfect Getaway Van to Escape it All
The next step will be to use the Solar Roadway blocks to replace the pavement at the welcome center and perhaps install them on a stretch of historic Route 66 nearby, added Blair, noting that rather than tapping the state’s already over-stretched highway budget, the goal will be to apply for grants and seek additional funds through crowdsourcing.
The Brusaw’s have used a similar approach to fund the development of the solar pavement, with the company receiving a series of grants from the U.S. Department of Transportation while also raising several million more through crowdsourcing.
The initial deployment at the Route 66 Welcome Center will cost about $100,000, according to Blair. The Brusaws declined to discuss the actual cost of each block, with Julie cautioning in her e-mail that, “This is just a pilot project, so mass production is not being used yet. If all goes well with the pilots, we hope to gear up for it in the next few months.”
That could sharply drive down the cost, though the solar road blocks would still cost more than conventional concrete or asphalt. But the Road to Tomorrow initiative has concluded that if the technology works as promised, it would not only generate money by being wired into the grid, but might also help cut down the costs of highway maintenance. If the blocks can melt snow and ice, said Blair, they’d need to be plowed and salted less often, for one thing.
The MoDOT project is just one of several pilot programs Solar Roadways hopes to participate in. It expects to soon install some of its blocks on public roads near the company's headquarters in Sandpoint, Idaho. And it is working on deals, the founders say.
Noting that there are about 29,000 square miles of paved roads in the U.S., Scott Brusaw said he believes a significant chunk of the nation’s growing energy demands could eventually be generated by switching to solar blocks. For those good at math, there are about 27.8 million square feet per square mile of road, equal to 6.32 million of the blocks.
At 44 watts, one square mile would be able to generate a maximum of about 278 megawatts — at least, theoretically. By comparison, U.S. nuclear plants produce anywhere from 479 megawatts to 3.8 gigawatts of power over a 24-hour period, according to the Energy Information Administration.
